Hoge efficiënte HDPE -pijpproductielijn Fabrieksprijs

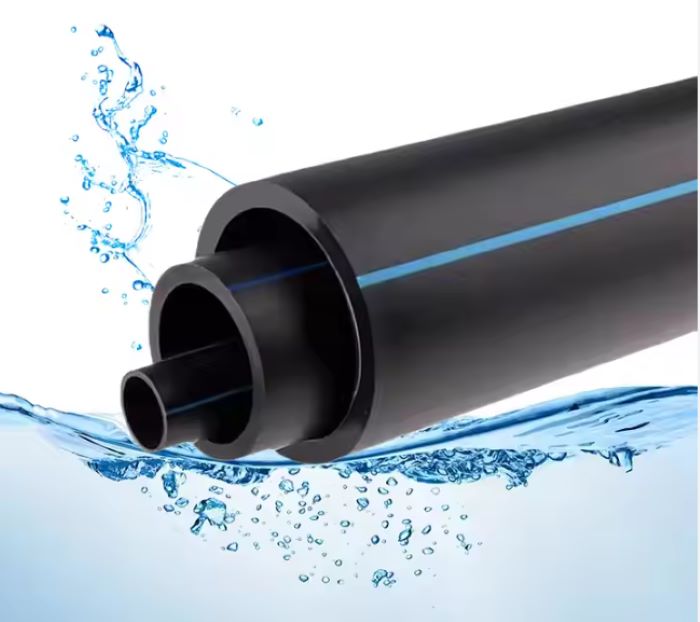

hdpe pipe

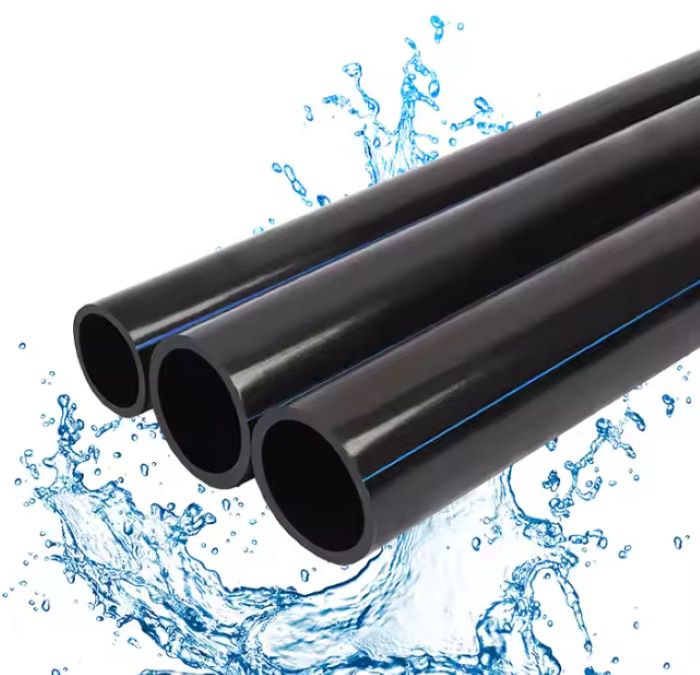

Good hygiene performance: During the processing of PE pipes, no heavy metal salt stabilizers are added, the material is non-toxic, there is no scaling layer, and there is no bacterial growth, which solves the hidden danger of secondary pollution of urban drinking water.

Excellent corrosion resistance: except for a few strong oxidants, it can withstand corrosion from various chemical media; No electrochemical corrosion.

Long service life: PE pipes can be safely used for more than 50 years at rated temperature and pressure.

Better impact resistance: PE pipes have good toughness, high impact resistance, and can withstand heavy objects directly

Passing through the pipeline will not cause the pipeline to rupture.

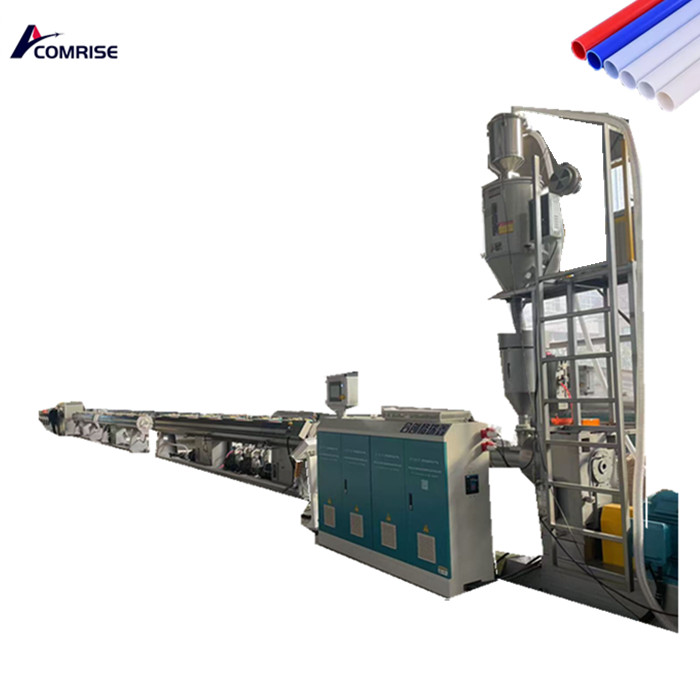

 High efficiency HDPE pipe production line factory price

Through long-term and continuous innovation and testing, Comrise has developed a new generation of PE pipe extrusion production line with high automation, high speed, high reliability, and low energy consumption. Our polyethylene pipe extrusion can process various materials, including high-density polyethylene, low-density polyethylene, polypropylene, PPR, PPH, PPB, MPP, PERT, etc.

Our polyethylene pipe extrusion production line can range from a minimum of 16mm with single or multiple layers of 2000mm.

GET A QUOTATION NOW

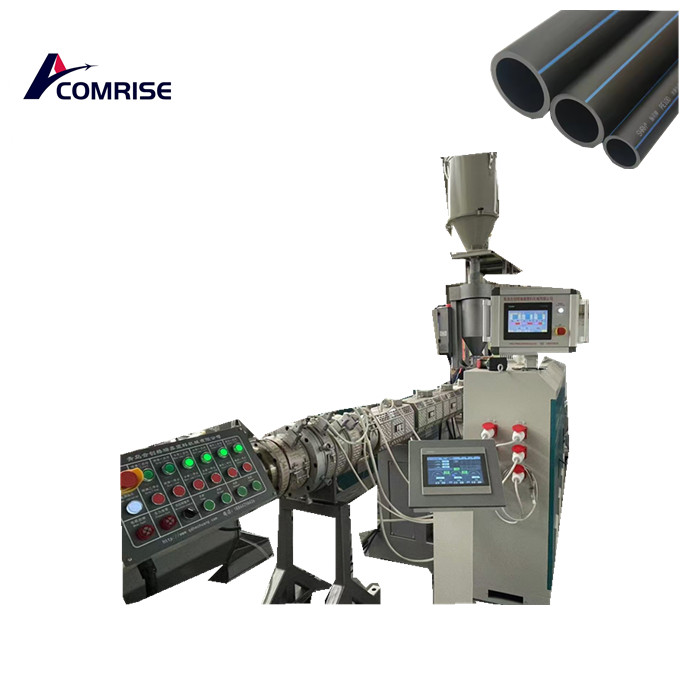

1.Single screw extruder.

1.1 Siemens touch screen and PLC

The 1.2 spiral structure of the gun barrel

1.3 Special design of screws

1.4 Air cooled ceramic heater

1.5 High quality gearbox

Based on the 33:1 L/D ratio designed for the screw, we have developed a 38:1 L/D ratio. Compared to the 33:1 ratio, the 38:1 ratio has the advantage of 100% plasticization, increasing output capacity by 30%, reducing power consumption by up to 30%, and achieving almost linear extrusion

Performance.

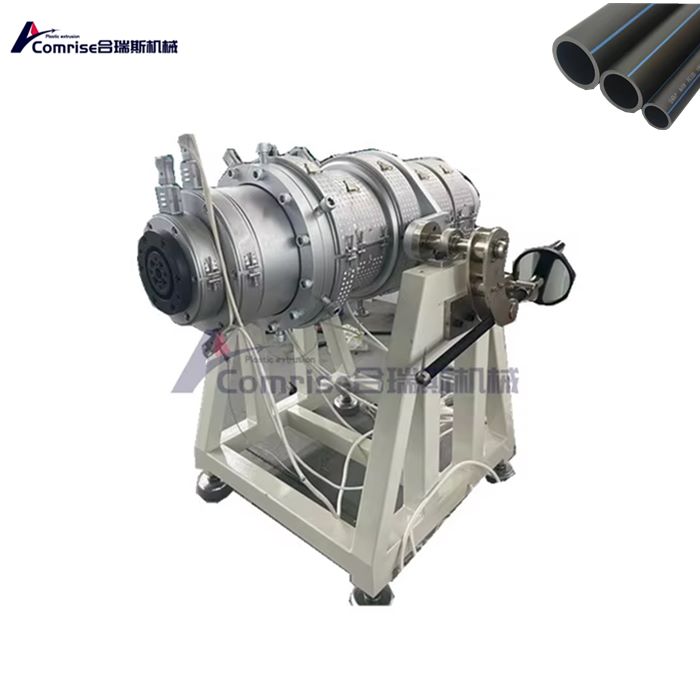

2.die head.Module

2.1 Mobile Device

2.2 Mold head rotation device

2.3 Heat dissipation device Core

2.4 cooling device

The extrusion die head adopts a spiral structure, and each material flow channel is evenly placed. Each channel undergoes heat treatment and mirror polishing to ensure smooth material flow. The die structure is compact and provides stable pressure, always from 19

Up to 20Mpa. Under this pressure, the pipeline quality is good and has little impact on output capacity. Can produce single-layer or

Multi layer pipeline.

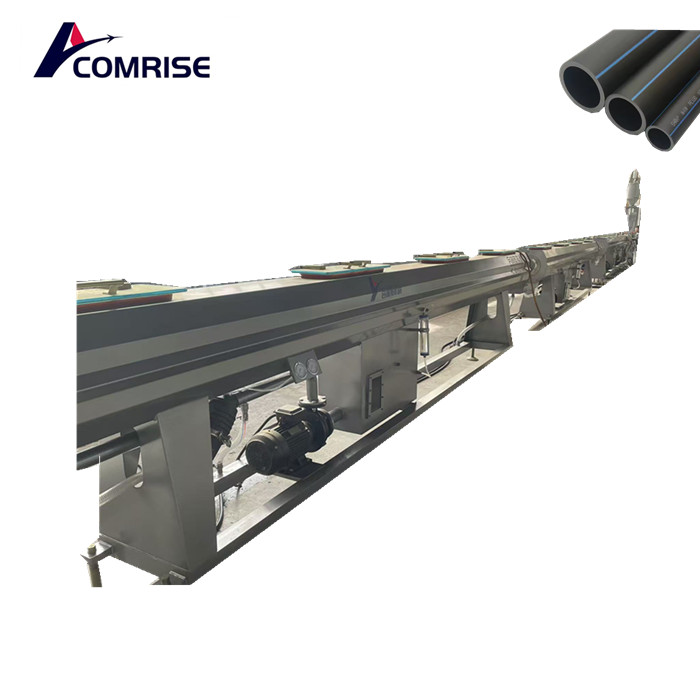

3.Vacuum tank.

3.1 Strong cooling of calibrator

3.2 Better pipeline support

3.3 Muffler

3.4 Pressure relief valve

Vacuum tanks are used for forming and cooling pipelines to achieve standard pipeline sizes. We use a dual chamber structure. The first room is

Ensure very strong cooling and vacuum functions within a short length. Due to the fact that the calibrator is placed at the front of the first chamber and the shape of the pipeline is mainly formed by the calibrator, this design ensures fast, better shaping and cooling of the pipeline.

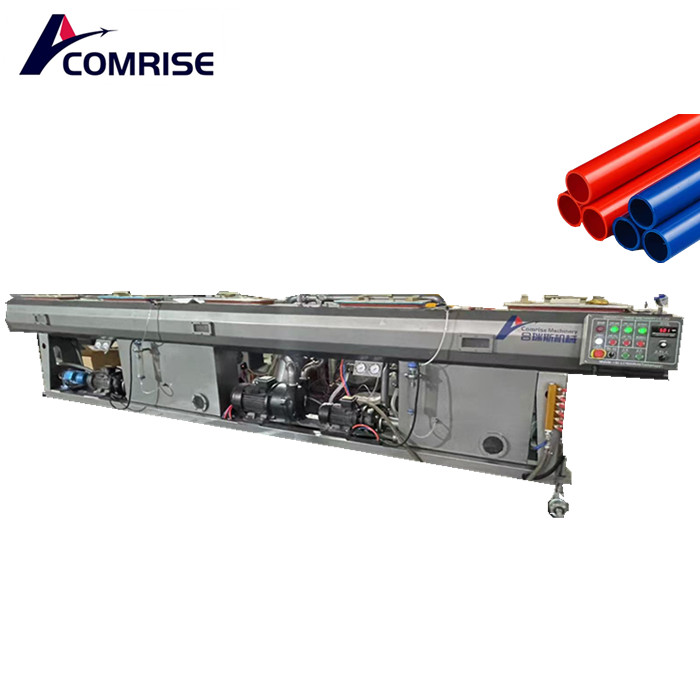

4.Cooling tank.

4.1 Pipeline clamping device

4.2 Water tank filter

4.3 Quality nozzle

4.4 Pipeline support adjustment device

4.5 Pipeline support device

The cooling tank is used to further cool the pipeline.

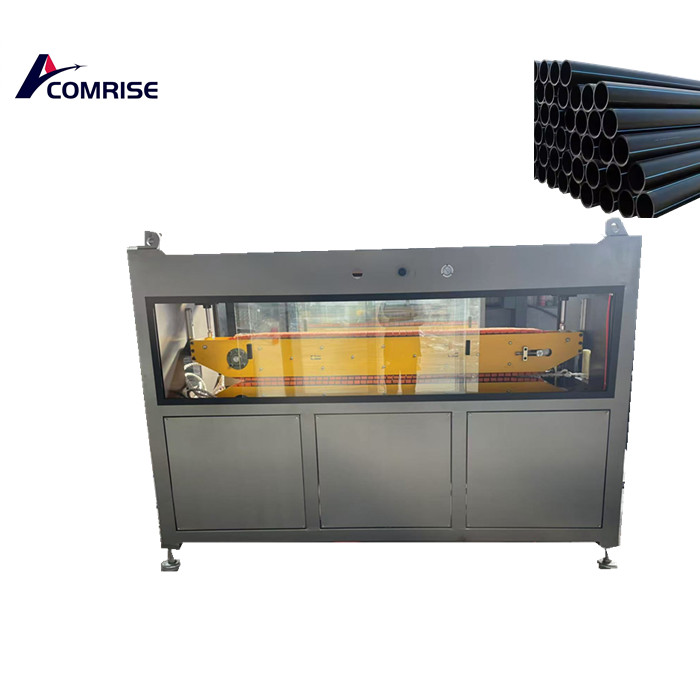

5.hauling machine

5.1 Pipeline clamping device

5.2 Water tank filter

5.3 Quality nozzle

5.4 Pipeline support adjustment device

5.5 Pipeline support device

The towing unit provides sufficient traction to stably pull the pipeline. According to different pipeline sizes and thicknesses, our company will customize the traction speed, number of claws, and effective traction length. In order to ensure that the extrusion speed of the pipeline matches the forming speed and to avoid deformation of the pipeline during traction.

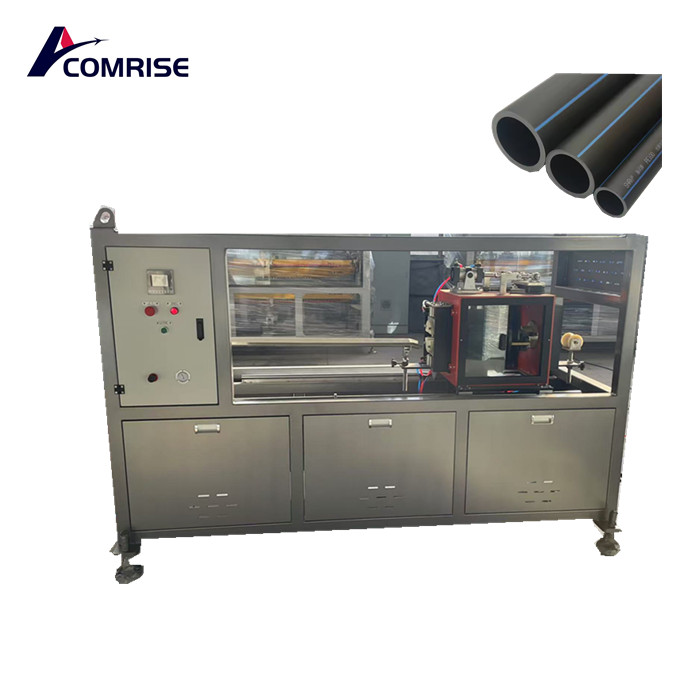

6.Cutting machine.

6.1 Universal clamping device

6.2 Central height adjustment

6.3 Saws and blades are interchangeable

The cutting machine is controlled by Siemens PLC and works together with the towing unit for precise cutting. Customers can set the length of the pipeline

They want to reduce. Multiple feed actions to complete a cutting process (protecting the blade and saw to prevent blade damage)

And the saw was stuck for the thick tube and the cut surface of the tube.

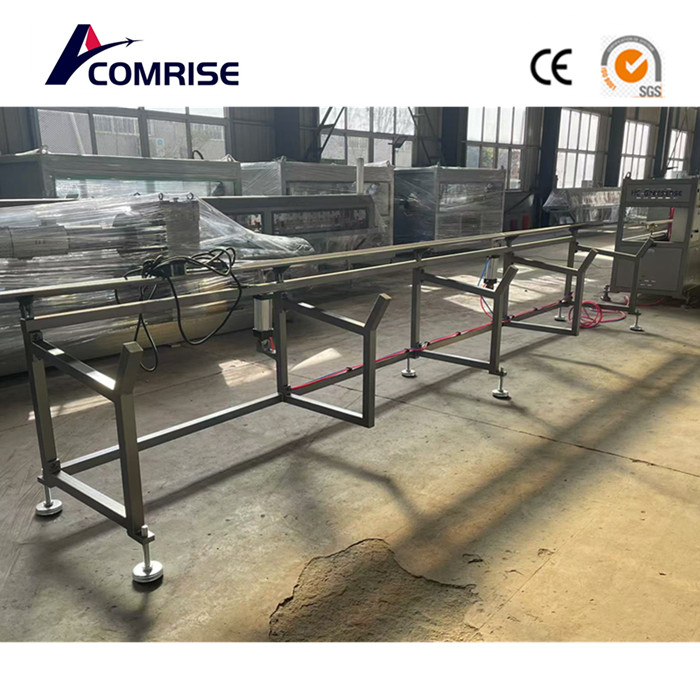

7.Stacker

7.1 Surface Protection of Pipelines

7.2 Central height adjustment

Support and unload pipelines. The length of the stacker crane can be customized.

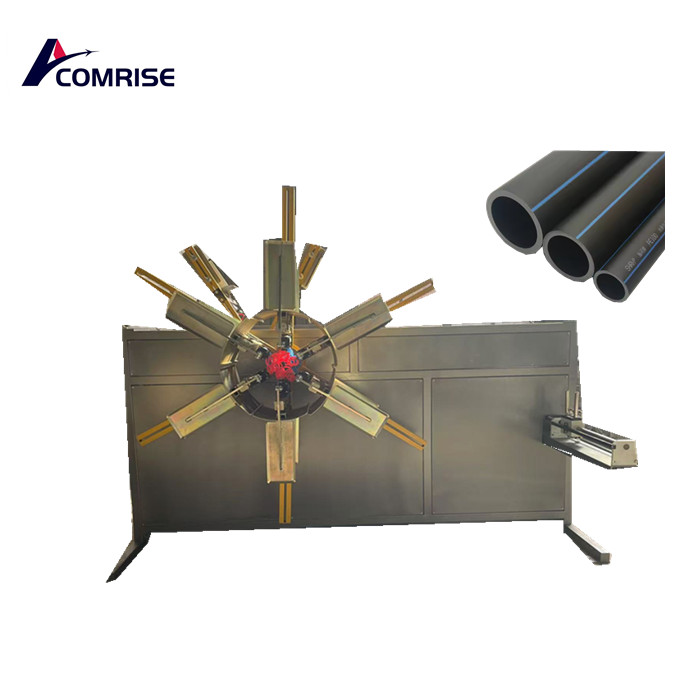

8.Winding machine.

8.1 Use of servo motors

Make the coil into a drum for easy storage and transportation. Usually used for pipes with a size of 110 millimeters or less. There is a single station and

Dual station options available.

The price is very favorable, welcome to inquire
